Technical Parameters
Ambient condition:
1. Temperature:-25℃~+50℃,, average temperature not exceed 35℃ during 24 hours.
2. Clean air, relative humidity not exceed 80% under40℃, higher humidity is allowed under lower temperature.

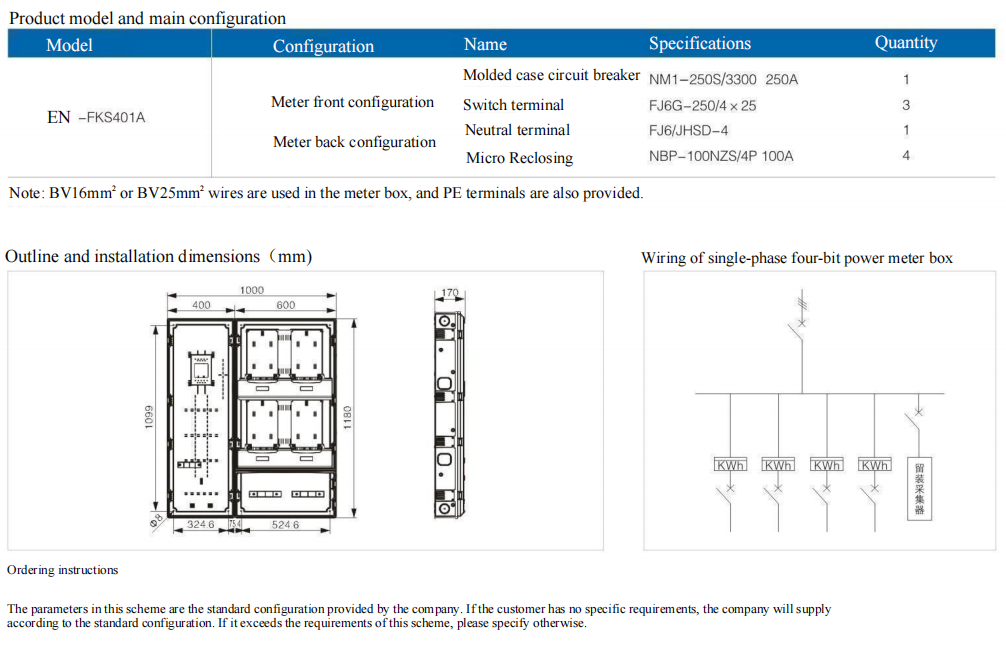

Product specification Model(refer to below) Main technical parameters of product
1.Main busbar rated current:10A~225A
2.Main bus rated short-time withstand current low:30KA
3.Insulation resistance:≧20MΩ
4.Rated insulation voltage UI:800V
5.Frequency:50Hz or 60Hz
6.Protection degree:IP43
