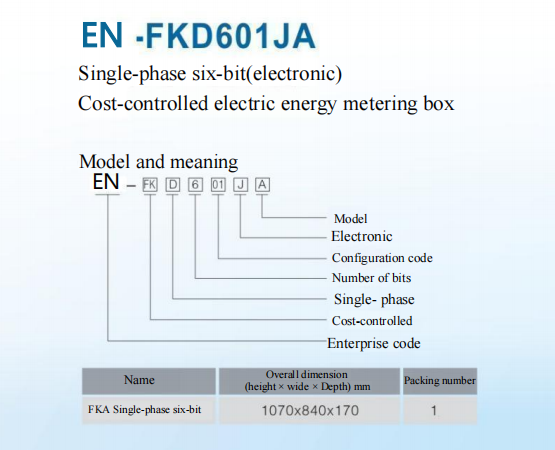

EN-FKD601JA

EN series energy meter box, using new environmental-friendly PCas material. This material is featured as anti-corrosion, anti-aging as well as with high and reliable insulation, high strength, good flame retardancy, innovative design, clean and beautiful surface ete. Its service life can reach more than 30 years.

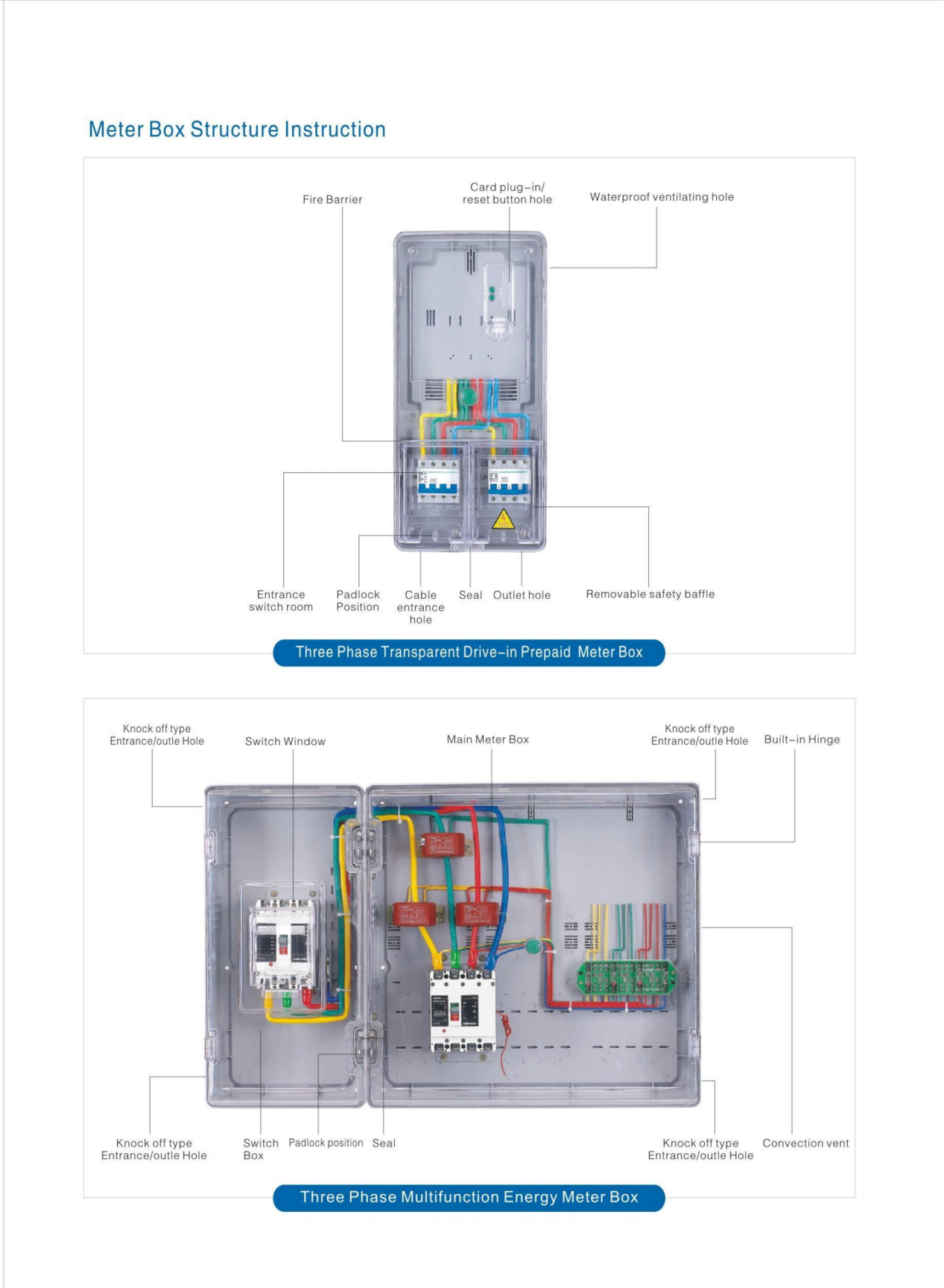

EN Series meter box adopts integrated design concept, enclosed all types of energy meter and the whole measuring circuit inside the box, which not only occupy little space, make it casy to be installed and managed, but also prevent the stealer to touch the measuring device, thus realize anti-theft fuction.
Since its launch, due to its unique design, novel technology as well as its advanced performance, EN series meter box is preferred by more and more power supply enterprises.
Scope of product application and ambient condition EN series meter box are applicable to power system withAC50Hzor 60Hz, rated working voltage 220V,380V, rated working current10-250A.

Product Detail

Product Tags

Technical Parameters

Ambient condition:
1. Temperature:-25℃-+50℃, average temperature not exceed 35℃ during 24 hours.
2. Clean air, relative humidity not excecd 80% under 40C.higher humidity is allowed under lower temperature.

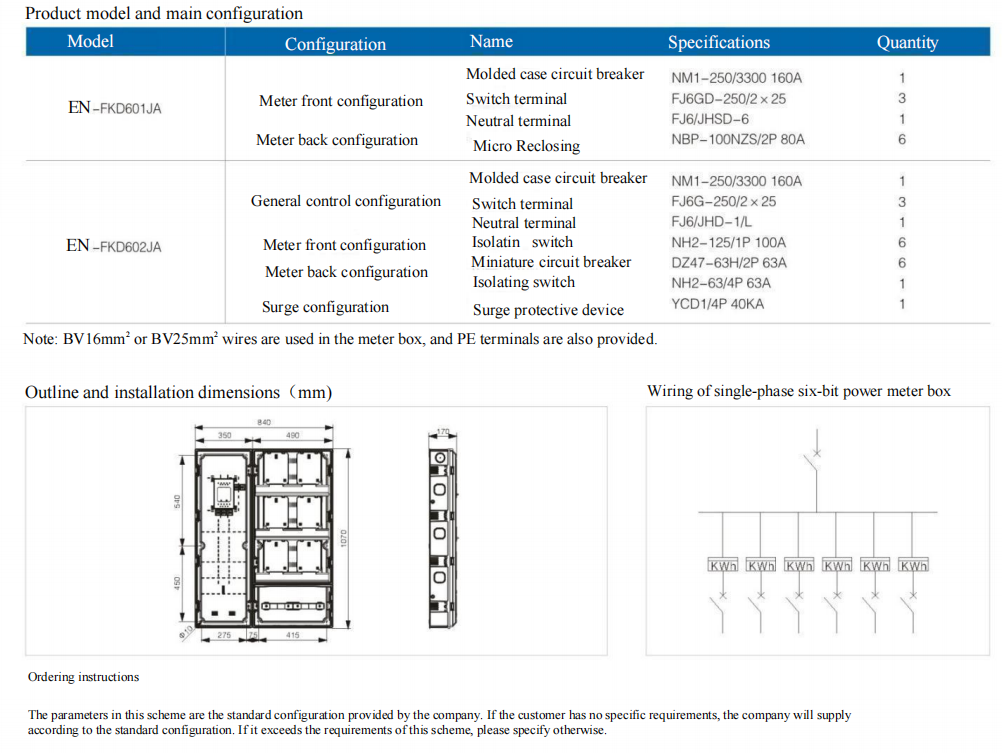

Praduct specifieation Model(refer to below) Main technical parameters of produet
1.Main busbar rated current:10A~225A
2.Main bus rated short-time withstand current low:30KA
3.Insulation resistance:≥20MΩ
4.Rated insulation voltage UI:800V
5.Frequency:50Hz or 60Hz
6.Protection degree:1P43
